The Freeform PRO

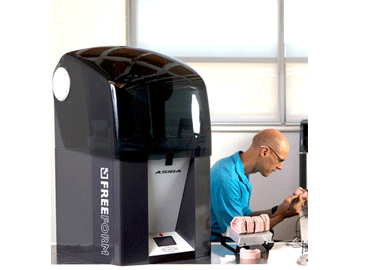

The Freeform PRO 3D Printer
The Freeform PRO™ is a professional 3D printer for direct manufacturing applications offering high-resolution, speed and reliability in a desktop format.


Features

Five Year UV LED Warranty The Freeform PRO™ includes a five-year warranty on the UV LED light source as standard.
Brushless Servo Precision Closed-loop brushless servo control of the Z-axis premits arbitrary resolutiosn in 1 µm increments with 200 nm resolution, making the PRO™ unparalleled in accuracy.
Material Level Sensor Builds are automatically paused when the material level is low, allowing long-term unattended operation without concern of failure.
Office Friendly The Freeform PRO™ is a true office peripheral with Ethernet connectivity for shared access across networks. Operation is almost completely silent, odor free, and requires no special facilities.

Specification

Build Size X, Y, Z96 x 54 x 200mm*
Pixel Size X,Y50 microns
Accuracy ± 10μm/cm
Z ControlVariable in 1 micron increments
Light SourceUV LED
File InputsSTL & SLC
SoftwareComposer Included. PC, Linux, Mac
Network Compatibility10/100 Ethernet
Industry SectorsDental, Audiology, Jewelry, General
System Size450 x 490 x 800mm
System Weight34Kg
Packaged Size/Weight 550 x 590 x 900mm / 40Kg
Power100~240V (50~60Hz) 2A MAX
