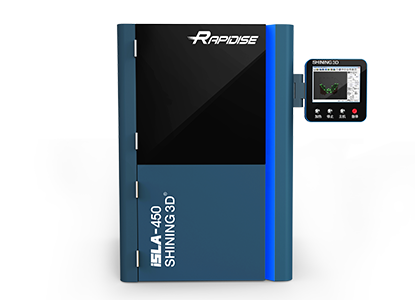

Rapidise SLA 3D Printer
Rapidise Stereolithography machine is developed by Shining3D, which is professional in 3D printing technology. The system is user friendly, high stability, free maintenance and perfect printing result.


High accuracy --Improving the accuracy and reducing the reprocessing. --ultraviolet laser will focus automatically, the facula diameter isbetween 0.1mm-0.15mm --Accuracy calibration automatically makes sure the better quality of prototyping.
high resolution --smooth surface(ra<0.1um) --can create any complicated components(such as hollow parts) --Symmetrical coating
Automatically and intelligent --Highly automatically processing and simple reprocessing. --can remote control in the same local area network --voice and SMS remind --Online laser inspection with auto-setting parameter; auto scanning path;liquid --level auto control.
Friendly design brings you more --touch panel for operation control; one key simple operation. --Compact and big operation space,convenient for observation. --Print task stop function during the printing process; --Integrated temperature and humidity display. --Removable work platform.
Various material available for different applications --Transparent,opaque,high-strength,thermostable photosensative resin materials are all avaiable. --Standard 220KGS of material,users can choose for preference.


machine size1100*1400*1800
weightaround 900KG(resin included)
laser source355nm (12 months warranty)
scannermade in Germany
facula size<0.2mm;between 0.1mm-0.15mm;
facula correctiondynamic focusing
scanning speed10m/s maximum
heating methodPTC heating panel
material355nm photosensitive resin,optional
printing size450*450*400
accuracy±0.05mm(within 100mm)or ±0.1%(more than 100mm)
layer thickness0.05mm~0.2mm
printing speedthe maximum printing speed can reach 120g/h*
Resin slotCan be replaced and updated
Power supply220V 50Hz
operation systemwindow XP ,window 7
data interfacestl、slc*
