Artec Eva


Artec Eva™
Artec Eva 3D scanner is the ideal choice for those that need to receive a quick and textured scan. Eva doesn't require markers or calibration. It captures objects quickly with vibrant color.


Features

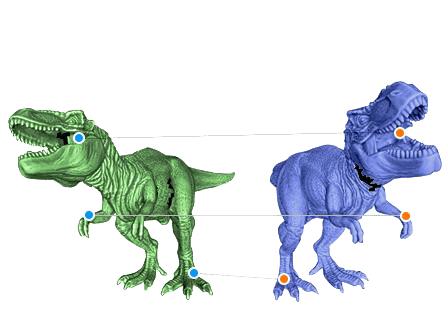

Align Scans Align all your scans together to get the full model. If something is missing, just scan that part again. To perfectly align many scans use our new optimizations algorithm. You can also place your model to the origin of a coordinate system.

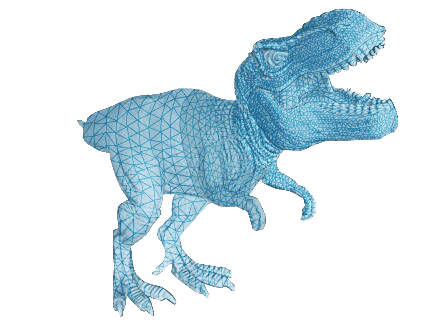

Fuse Scans into One 3D Model Fuse all scans together to get a single triangulated mesh. Our Fusion algorithm will do it quickly.
Smooth & Optimize You can optimize the grid, fill holes and smooth a surface. Many different tools are available.

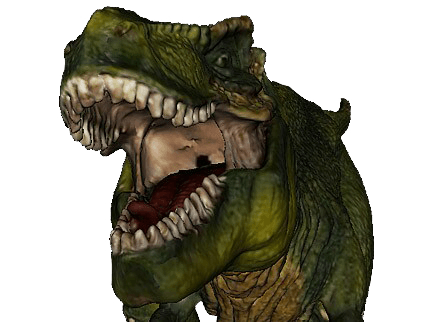

Texturize Apply texture to your object automatically, with a click of mouse. The newest algorithms fully utilize the power of your CPU, so you may want to get the best one.
Export the result Export the result into one of several 3D formats (VRML, Obj, STL, Ply, Ascii, AOP, E57, PTX, E57, PTX) to work with a variety of 3D applications available on the MARKET, such as Autodesk Maya, 3DMax, Autocad, Pixologic ZBrush, Blender, XSI, Mudbox, Geomagic, Rapidform and many others. Moreover, you can export measurement data into a CSV file and print it.

Specification

Ability to capture textureYES
3D resolution, up to0.5 mm
3D point accuracy, up to0.1 mm
3D accuracy over distance, up to0.03% over 100 cm
Texture resolution1.3 mp
Colors24 bpp
Light sourceflash bulb (no laser)
Working distance0.4 – 1 m
Linear field of view, HxW @ closest range 214 mm x 148 mm
Linear field of view, HxW @ furthest range 536 mm x 371 mm
Angular field of view, HхW 30x21°
Video frame rate, up to 16 fps
Exposure time0.0002 s
Data acquisition speed, up to2 000 000 points/s
Multi core processingYes
Dimensions, HxDxW261.5 x 158.2 x 63.7 mm
Weight 0.85 kg
Power consumption12V, 48W
Interface1 х USB2.0
Output formatsOBJ, PLY, WRL, STL, AOP, ASCII, PTX, E57, XYZRGB
Output format for measurements CSV, DXF, XML
Processing capacity 40'000'000 triangles/1GB RAM
Supported OSWindows 7 or Windows 8 - x64
Minimum computer requirementsI5 or I7 recommended, 8Gb RAM, NVIDIA GeForce 400 series
Calibrationno special equipment required
