EinScan


EinScan Handheld 3D Scanner
EinScan Handheld 3d scanners developed by Shining3D, it is the first desktop and handheld dual-use 3D scanner in the world , with its smart and portable appearance, it can meet the requirements of high accuracy at 0.02mm when scanning fixed.


Features

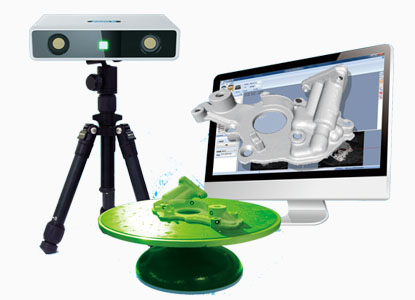

Desktop 3D Scanning High accuracy, the highest accuracy can reach 0.03mm Fairly big scan range, 3D surface data can be captured for objects less than 1.5m (photogrammetry system Shining3D-Metric is recommended for objects more than 1.5m, it can measure 0.1m*0.1m*0.1m~50m*50m*50m)
Handheld Real-time Scanning Portable 3D scan, fast scanning speed, Fully automatic scanning alignment without reference points, easy operation

Specification

Single scan range200*150mm
Accuracy0.03-0.3mm
Point distance0.15-3.00mm
Scan depth200-500mm
Camera resolution1,310,000*2
Light sourceGreen(LED)
Scan typeHandheld/Tripod-fixed
Data output formatASC,STL,PLY,RGE,P3,PF
Dimension(scanner)200 mm*150 mm*50mm
Weight2 kg
PC operation systemOperation system: win7, 64bits
