EinScan-S

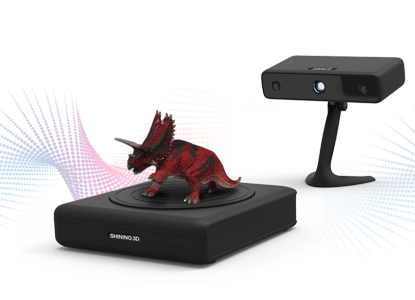

EinScan-S Desktop 3D Scanner
EinScan-S 3D scanner is a desktop 3D scanner that delivers printable 3D model with comparatively high accuracy for a range of creative 3D printing applications. EinScan-S bring the industrial grade 3D scanning technology to everyone who wants to design high quality 3D models.


Features

High Accuracy EinScan-S 3D scanner utilizes white light 3D scanning technology, features in low noise,superior characteristics.

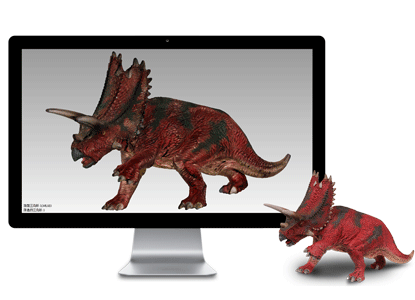

Color Texture Scan EinScan-S can capture geometric shape, color and texture information , which can be applied in computer graphics and animation, games, digital achieving, prototyping and color 3D printing, etc..

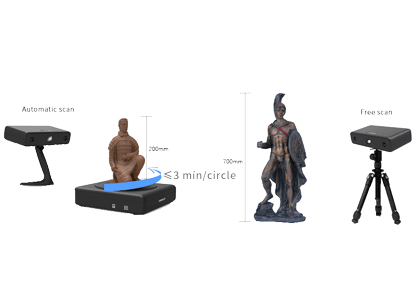

Two Scan Options Equipped with automatic scan and free scan mode, EinScan-S is capable of scanning for objects small and large. Two scan modes can switch from each other freely.

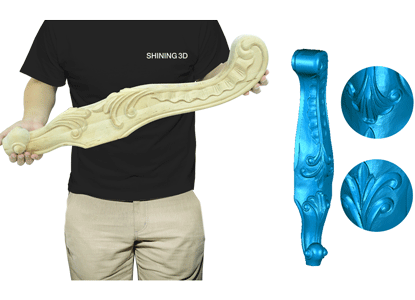

From Small to Large EinScan-S is capable of scanning for objects small and large.The maximum scanning size is 200*200*200mm under automatic scan mode;700 mm *700 mm *700mm under free scan mode.

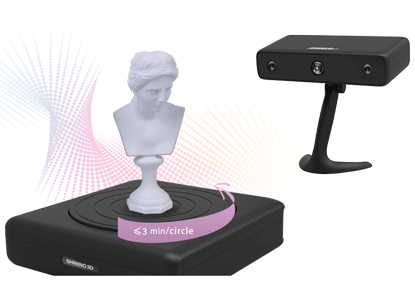

Faster than Ever Automatic scan takes less than 3 minutes to complete one circle, three times faster than similar desktop 3D scanner in the market with the turntable scans.

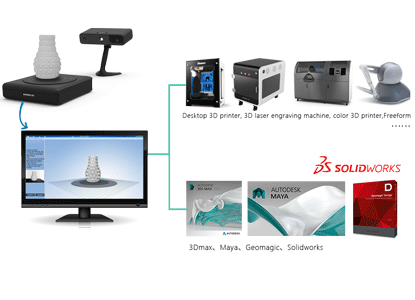

Simple to Use EinScan-S 3D scanner allows anyone to scan. All you have to do is “click”and the scan process will be done automatically to turn objects into 3D models on computer. International standard file format s, stl, obj, it can applied in many 3D applications.
Ready to Print All the digital models scanned by EinScan are ready to be printed in 3D printer without any editing work.
Eye safety lighting White light source,safer compared to laser scanning, harmless to eyes.

Specification

Accuracy≤0.1mm
Maximum scan volumeAutomatic scan:200*200*200mm Free scan:700*700*700mm
Scan speedAutomatic scan:<3mins Free scan:<10s(single range)
Point distance(mm) 0.17mm ~0.2mm
Alignment methodAutomatic alignment / Manual alignment
Scan modeAutomatic scan Free scan
Printing supportYes
Resolution1.3 Mega pixel
Light sourceWhite light
Scanner dimensionwithout package:scanner head size 246*126*60mm/ turn table 246*260*65mm with packing:630*400*180mm
Weightwithout package:3.5kg with packing:5.7kg
Power consumption50w
AC input100V~230V
Single scan range (free scan)200*150mm
File FormatSTL,ASC
