FreeScan_X3

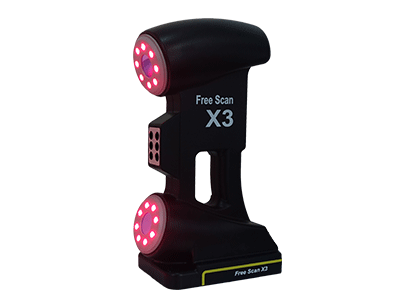

FreeScan X3 Laser Handheld 3D Scanner
FreeScan X3, with innovative and ultra-portable (0.8kg) handheld design, is characterized by its high accuracy and high reliability. Meanwhile, portative handheld operating mode is adopted. Whether in narrow operating space or bright outside, whatever the texture and color of the object, the size and complexity of the part, FreeScan X3 that adopts new line laser array and high speed 3D scan technology could be used in the situation where there is no external positioning system, tripod or fixture.


Features

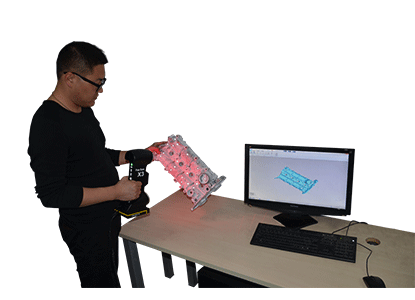

Light body and easy operation Light and handy (0.8kg), narrow space operation accessible, external clamping positioning no needed;
Large measurement space Almost unlimited 3D scanning, not affected by size, texture and color of the object;

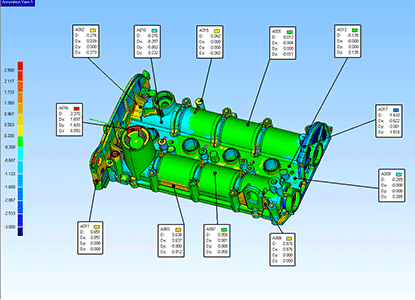

High accuracy, high speed Accuracy up to 0.03mm, under German VDI/VDE 2634 standard. High speed scanning: 240000 scans/s;

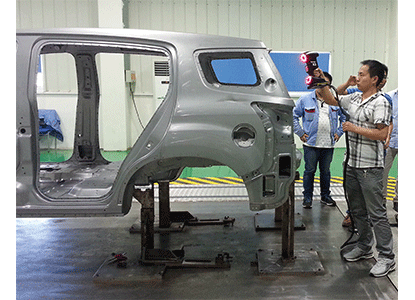

High compatibility Compatible photographic 3D photogrammetric systems, measuring large workpiece.

Specification

Weight0.8 (kg)
Size135 x 80 x 300 (mm)
Light source6 line laser array, Class II (eye safe)
Scan rate240000(scans /s)
Scanning area230 x 250 (mm)
Resolution0.100 (mm)
Measurement accuracyMaximum 0.03 (mm)
Volume precision0.020 + 0.100 (mm / m)
Working distance300 (mm)
Scan depth250 (mm)
Measurement range (object size)0.1 - 6 (m), extendable
Transmission modeUSB3.0
Working temperature-10 - 40 ℃
Working humidity10 - 90 %
