OpticScan-3M


OpticScan-3M 3D Scanner
OpticScan-3M 3D scanner is the standard 3D scanner released by Shining 3D. Equipped with 3 mega pixels cameras and latest blue light scanning technology, it has wide application due to its excellent performance.


Features

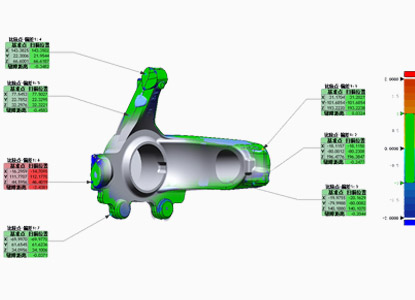

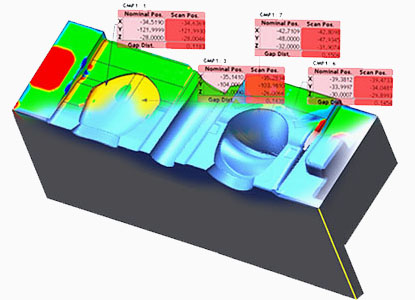

High Accuracy, 0.007mm for Single Scan Accuracy Reference points optimization, overall accuracy could reach 0.1mm/m Accuracy measuring is done according to German neasuring inspection standard VDI/VDE2634

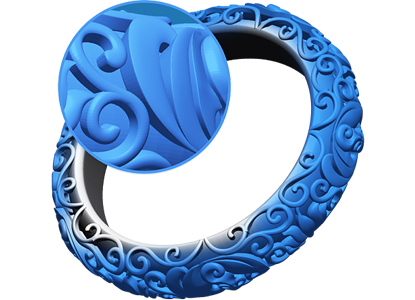

Quality Details 3.0 mega pixels cameras presents you high resolution data with exquisite details.
High Speed Scan, Less than 3 Seconds for Single Scan It takes only a few minutes for small parts scanning It takes around 30 minutes to scan a 1 meter long object(it varis for different operators)
Adjustable Scan Ranges 3 sets of scan ranges are available Freely adjustable More convenient and suitable

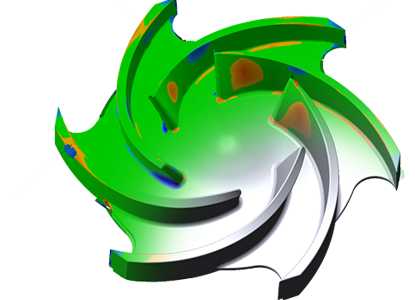

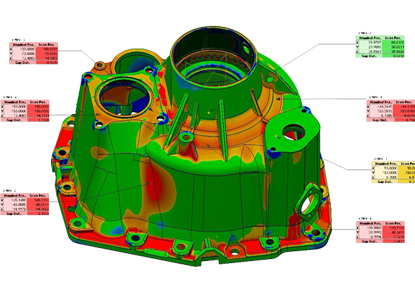

Suitable for Scanning Objects with Complex Surfaces, Soft Objects’ Overall Inspection and Measurement Non-contact 3D scanning can be applied in complex component like turbine blade measurement and inspection, consuming around 10% of the total time needed with traditional CMM system. Not only faster, but also full dimension inspection and measurement can be carried out.

Specification

Single scan range100*75mm 200*150mm 400*300mm
Accuracy0.007-0.025mm
Point distance0.048-0.192mm
Scan time2S
Volume accuracy0.1mm/m
Scan depth100-400mm
Camera resolution3,000,000*4
Light sourceBlue light(LED)
Scan typeNon-contact structure light scanning
Alignment methodReference points auto-alignment/manual alignment
Output data formatASC,STL,PLY,RGE,P3,PF
Operating systemwin7 64bit
Operation temperature0 - 45 C
