OptimScan-5M

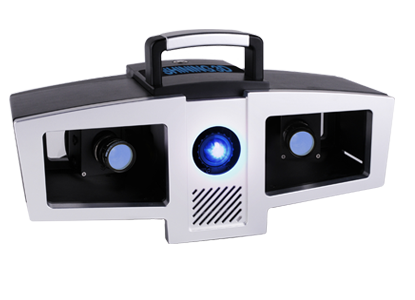

OptimScan-5M 3D Scanner
Shining 3D OptimScan-5M 3D scanner is the latest blue light 3D scanner in the market, featuring high-end outlook, structure, component and configuration. Its 5 mega pixel cameras and blue light scanning technology bring users amazing scanning speed


Features

Blue Light Scanning Technology OptimScan-5M 3D Scanner equipped with Blue Light Technology enables you to scan more kinds of objects with dark color feature or metallic materials.
Adjustable Scan Ranges Single scan accuracy could reach 0.007mm Overall accuracy could be contained within 0.05mm/m

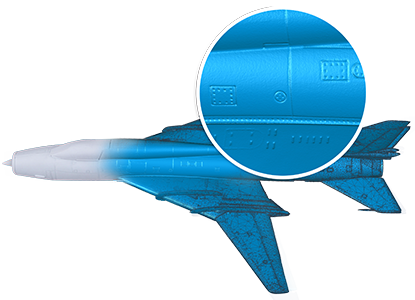

Higher Performance 5.0 mega pixels cameras bring you higher resolution, better quality
Fasting Scan speed Single scan time is under 2 seconds Data registration is free to switch between automatic alignment and manual alignment.

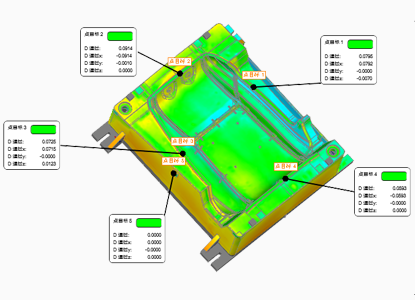

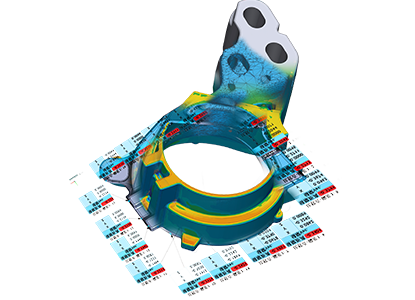

Suitale for applications of military industry, aerospace industry, molding industry, etc. Non-contact 3D scanning can be applied in complex component like turbine blade measurement and inspection, consuming around 10% of the total time needed with traditional CMM system. Not only faster, but also full dimension inspection and measurement can be carried out.

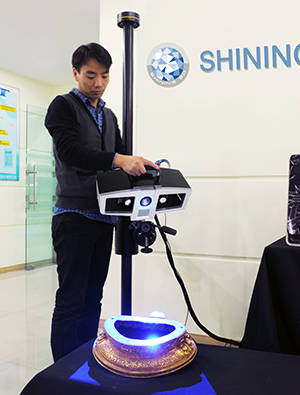

Reliable and Portable Projection light is safe for eyes Small and portable, possible for large size parts scanning User-friendly cross-bar makes it easier to be carried

Specification

Single scan range100*75mm 200*150mm 400*300mm
Accuracy0.005-0.015mm
Point distance0.04-0.16mm
Scan time2S
Volume accuracy0.05mm/m
Scan depth100-400mm
Camera resolution5,000,000;2
Light sourceBlue Light(LED)
Scan typeNon-contact structure light scanning
Alignment methodReference points auto-alignment/manual alignment
Output data formatASC,STL,PLY,RGE,P3,PF
Configuration requirementCPU:Intel core i7 3770
Operating systemwin7 64bit
Operation temperature0 - 45°C
