Renishaw DS10

Renishaw DS10

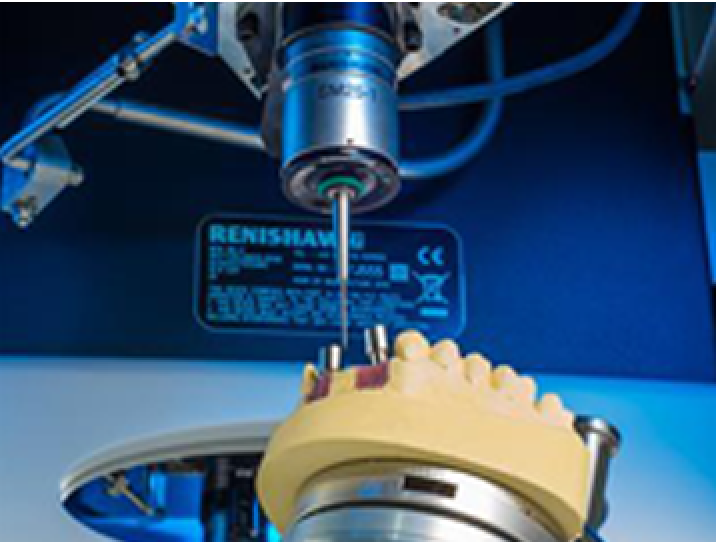

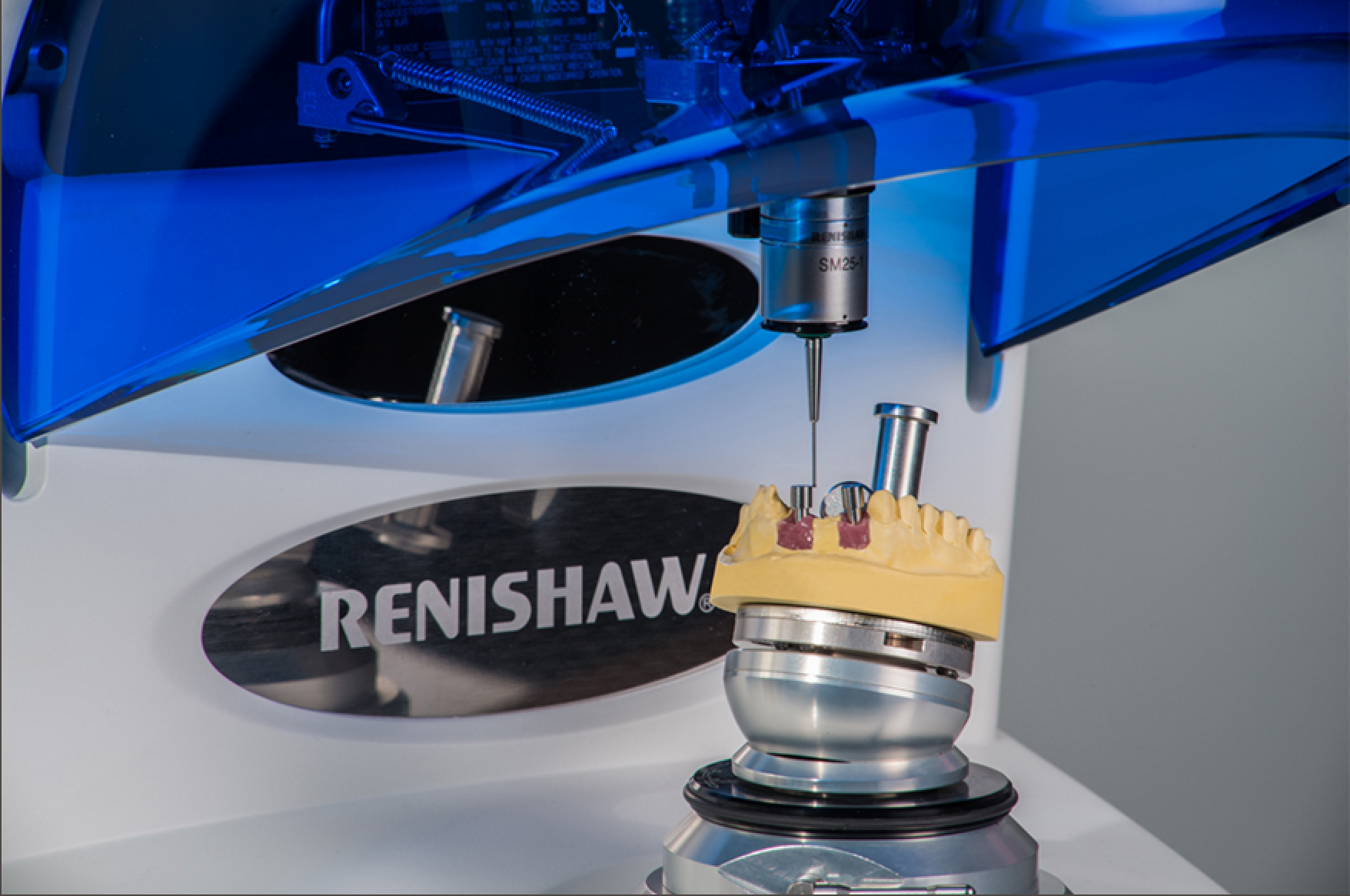

scanning DS10 scanner scanning implants The DS10 scanner uses a patented non-cartesian mechanism. Unlike conventional designs, this provides a lightweight and cost-effective structure that enables high-accuracy processing in a compact device. This means that even the smallest lab can accommodate a scanner.


Renishaw's DS10 is based on an innovative but well proven mechanism, providing exceptional accuracy in a compact, lightweight package. With accuracy tested to ISO 10360-4, the DS10 achieves superior accuracy through the use of Renishaw's contact scanning technology which has been used in thousands of measurement applications worldwide, including critical applications such as aerospace engine parts.
Features at a glance

Full bridge scanning
Abutment scanning pins
Implant bridge position measurement
Bite impression scanning
Wax scanning


Accuracy20 µm to ISO10360 -4
Dimensions (approximate)300 mm width × 400 mm depth × 550 mm height
Weight25 kg maximum
Voltage for power supply (ac-to-dc adaptor) 100 V to 240 V ac
Frequency range50 Hz to 60 HZ
Voltage for scanning machine18 V dc
Operating environment15 °C to 26 °C
Transportation temperature–20 °C to +70 °C
Transportation humidity0% to 95%
